Uni-T UT216A Digital Clamp Meter
The Uni-T UT216A digital clamp meter is a versatile tool designed for use with electrical installations and high-frequency systems, such as IT infrastructure and server rooms. The clamp design allows for quick current measurement without disrupting the circuit, which significantly simplifies daily diagnostics.
Wide measurement range and high-frequency operation
The UT216A model enables measurement of AC current up to 600A and AC voltage up to 750V and DC voltage up to 1000V, making it suitable for more demanding applications. Support for higher voltage frequencies allows operation in environments such as electronic device power supply systems.
Features for accurate analysis
True RMS ensures reliable measurement results, while MAX/MIN and Relative modes allow for better analysis of parameter changes. The NCV function enables quick non-contact voltage detection, and Data Hold makes it easier to read results in hard-to-reach places.
Convenient design and everyday functionality
The ergonomic housing and 30 mm jaw opening ensure comfort even during extended use. The display backlight and built-in flashlight facilitate work in low light, while the auto-off feature and low battery indicator assist with daily use.

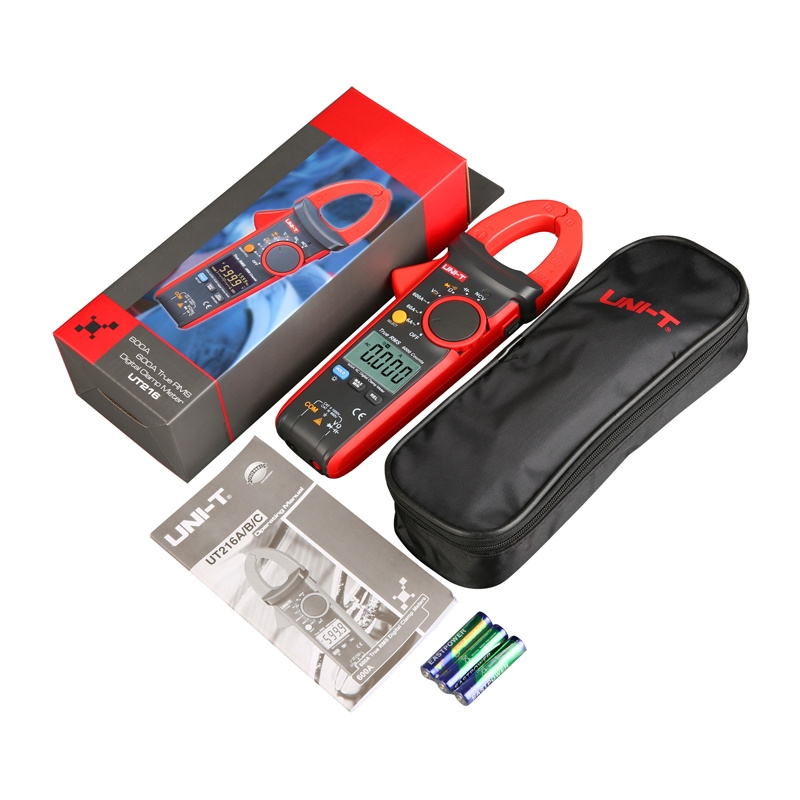

Included
- Clamp meter
- Batteries x3
- Test leads
- Carrying case
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT216A |
| Type | True RMS clamp meter |
| AC current | 600A ±(2.5%+5) |
| AC current range | 50/60Hz |
| AC voltage | 750V ±(1.2%+5) |
| AC voltage range | 40Hz ~ 400Hz |
| DC voltage | 1000V ±(0.8%+1) |
| Resistance | 60MΩ ±(1%+2) |
| Capacitance | 60mF ±(4%+5) |
| Maximum reading | 6000 |
| Functions | True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, MAX/MIN, LCD backlight, flashlight, auto-range, auto-off, low battery indicator |
| Jaw opening | 30 mm |
| Power supply | 3x 1.5V battery (R03) |
| Display | 38 x 24 mm |
| Dimensions | 220 x 75 x 40 mm |
| Weight | 280 g |
| Color | Red and gray |
| Certifications | CE, UKCA, cETLus |
