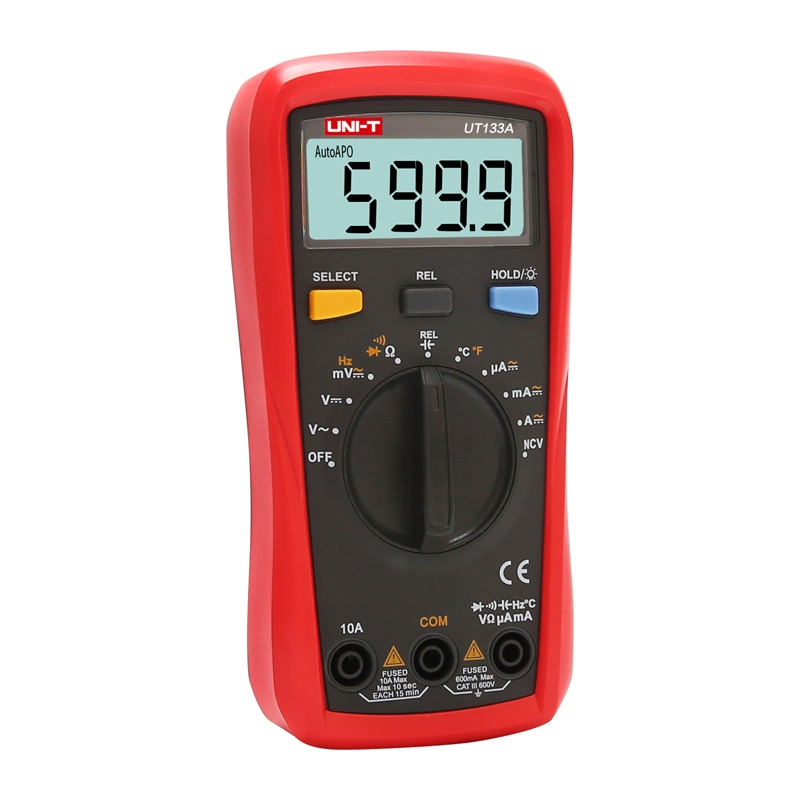

Uni-T UT133A Handheld Digital Multimeter
The Uni-T UT133A is a handy digital multimeter designed for use in the electrical industry, combining a compact housing with a wide range of basic measurements. The device uses an intelligent ADC chip, features a clear display, and is designed for everyday use in conditions requiring reliable and convenient operation. An additional advantage is its resistance to drops from heights of up to 2 meters, which increases the equipment’s durability during operation.
Wide measurement range and automatic operation
The UT133A model allows for the measurement of DC voltage up to 600 V, AC voltage up to 600 V, DC current up to 10 A, AC current up to 10 A, resistance up to 60 MΩ, capacitance up to 9.999 mF, frequency up to 1.000 MHz, and temperature from -40°C to 1000°C. Thanks to automatic range switching, the device is more convenient and faster to use, which is particularly useful during frequent measurements. This model is designed for users who expect greater versatility and a wider range of functions in a single device.
Features for increased convenience and safety
The UT133A is equipped with a diode test, continuity buzzer, NCV function, Data Hold, LCD backlight, and automatic shut-off. The UT133 series also offers an audible alarm for voltage or current overload, a high-voltage warning, and safety features to enhance user safety. The CAT II 600V safety rating makes the device suitable for standard measurement tasks.
Included
- Handheld digital multimeter
- Test leads
- Thermocouple
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT133A |
| Type | Digital multimeter |
| DC voltage | 600mV / 6000mV / 60V / 600V ±(0.5%+3) |
| AC voltage | 600V ±(0.7%+3) |
| DC current | 600 µA / 60 mA / 600 mA / 10 A ±(1.0%+3) |
| AC current | 10 A ±(1.2%+3) |
| Resistance | 600 Ω / 6000 Ω / 60 kΩ / 600 kΩ / 60 MΩ ±(0.8%+2) |
| Capacitance | 9.999 nF / 99.99 nF / 999.9 nF / 9.999 µF / 99.99 µF / 999.9 µF / 9.999 mF ±(4.0%+5) |
| Frequency | 10.00 Hz ~ 1,000 MHz ±(0.1%+4) |
| Temperature °C | -40°C ~ 1,000°C ±(1.0%+4) |
| Temperature °F | -40°F ~ 1,832°F ±(1.5%+5) |
| Maximum reading | 6000 |
| Range switching | Automatic |
| Functions | Diode test, continuity buzzer, NCV, Data Hold, LCD backlight, auto power off, overvoltage or overcurrent alarm, high voltage warning |
| Safety | CAT II 600V |
| Drop test | 2 m |
| Power supply | 2x 1.5V battery (R03) |
| Weight | 255 g |
| Dimensions | 155 mm x 76.5 mm x 49 mm |
| Display dimensions | 56.8 mm x 36.1 mm |
