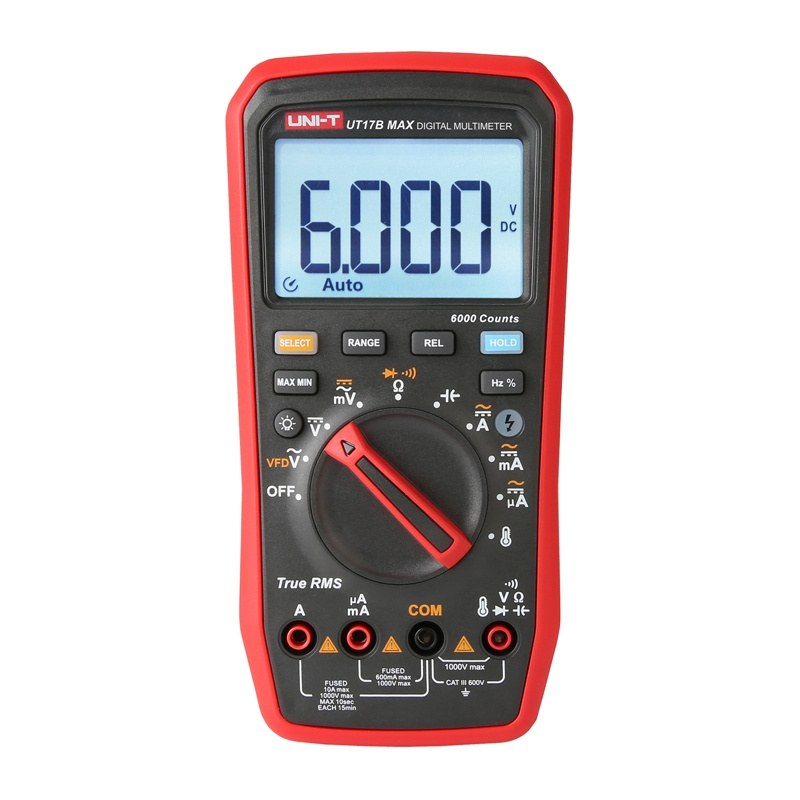

Uni-T True RMS UT17B MAX Digital Multimeter
The Uni-T UT17B MAX is an enhanced version of the True RMS series multimeter, which, in addition to a wide range of basic measurements, also offers a temperature measurement function. The device measures DC and AC voltage up to 1000 V, DC and AC current up to 10 A, resistance up to 60.00 MΩ, capacitance up to 6000 µF, and frequency up to 10 MHz. With a temperature range from -55°C to 500°C, this model is better suited for a wider variety of service and diagnostic applications.
Features that simplify daily diagnostics
Like the UT15B MAX, the UT17B MAX is equipped with a display with a maximum reading of 6000, as well as continuity and diode test functions, Data Hold, MAX/MIN, and relative mode. Adjustable backlight, automatic and manual range switching, auto-off, and wake-up with any button enhance the convenience of daily use. As a result, the device performs well in both basic and more demanding measurements.
Greater capabilities and ready to use right away
A major advantage of this model is the inclusion of a Type K thermocouple in the kit, allowing you to use the temperature measurement function right away. Safety is enhanced by a wrong-wire connection alarm and CAT III 600V overvoltage protection. It is a good choice for those who expect more advanced diagnostic capabilities without sacrificing ease of use.
Included
- Digital multimeter
- User manual
- Standard gold-plated test leads x2
- Test leads with fine tips x2
- Batteries x2
- Type K thermocouple x1
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT17B MAX |
| Type | True RMS digital multimeter |
| DC voltage | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.4%+3) |
| AC Voltage | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.5%+5) |
| VFD | 600.0 V ±(8%) |
| AC current | 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3) |
| DC current | 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3) |
| Resistance | 600.0Ω to 60.00MΩ ±(0.5%+2) |
| Capacitance | 6.000nF to 6000µF ±(2.0%+5) |
| Frequency | 10Hz ~ 10MHz ±(0.1%+3) |
| Duty Cycle | 1% ~ 99.9% ±(1.0%+4) |
| Temperature | -55°C to 500°C ±2°C / ±4°F |
| Display | 6000 |
| Continuity Test | Yes |
| Diode Test | Yes |
| Data Hold | Yes |
| MAX/MIN Mode | Yes |
| Relative Mode | Yes |
| Backlight | Adjustable |
| Range selection | Automatic and manual |
| Auto power off | Yes |
| Wake-up with any button | Yes |
| Visual and audible alarm | Yes |
| Wiring error alarm | Yes |
| Voltage category | CAT III 600V |
| Power Supply | 2x 1.5V AA batteries |
| Weight | 455 g |
| Dimensions | 182 mm × 91 mm × 45 mm |
| Color | Red and gray |
