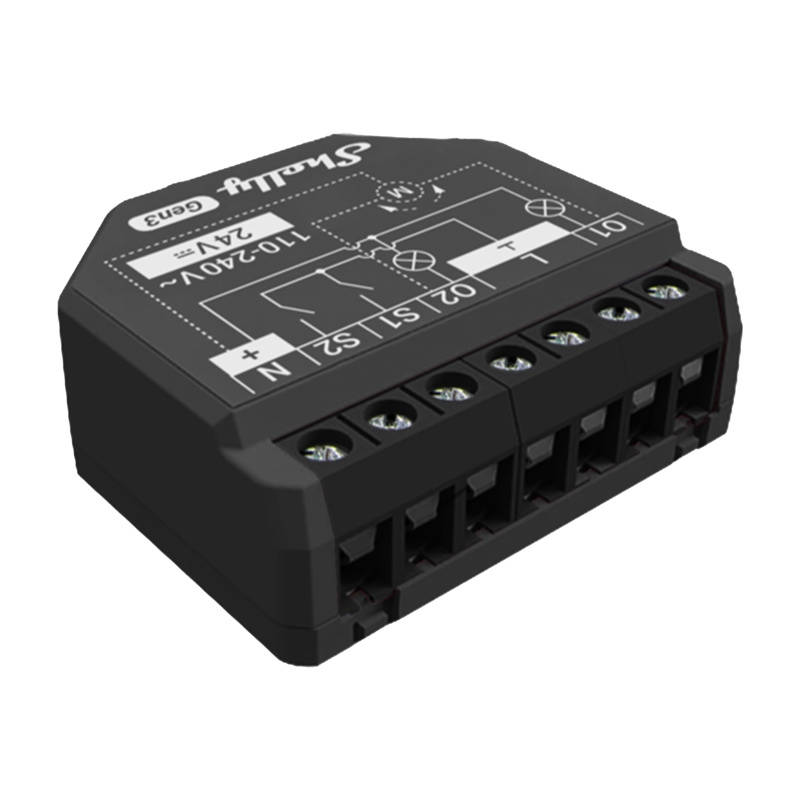

Shelly 2PM Gen3 Set of 4 Controller WiFi/Bluetooth
The Shelly 2PM Gen3 is a smart dual channel switch that combines remote control and energy monitoring functions. With its help, you can remotely manage two different electrical circuits or two-way devices, such as blinds or awnings – and from anywhere in the world. Thanks to its ability to fit into standard flush-mounted boxes, electrical outlets and switches, the product will also work well in areas with limited space. You will find 4 pieces of the product in the set.
Two-channel control and measurement of energy consumption
The Shelly 2PM Gen3 controller allows you to simultaneously control two channels on the same phase with the ability to precisely monitor energy consumption on each channel. This allows you to effectively manage lighting and other devices, optimizing their operation and controlling energy consumption in real time.
Total control over your devices
With Cover Control, the Shelly 2PM Gen3 controller allows you to automatically control the position of blinds, awnings, curtains, sliding doors and other two-way motors. The product offers precise adjustment of the angle of the blinds’ slats, adjusting the amount of light entering the room. As a result, you will enjoy ideal light conditions at any time.
State-of-the-art processor and functionality
The advanced ESP-Shelly-C38F processor, along with 8 MB memory, provide unparalleled performance and stable operation. With support for virtual components and improved terminal terminals, the controller guarantees reliability even under demanding conditions.
Automation and script support
The device supports advanced automation options such as scripting, WebSocket, HTTPS, UDP, TLS, as well as custom certificates, allowing you to customize its operation. Shelly 2PM Gen3 also supports 20 webhooks (with the ability to assign as many as 5 URLs to each), enabling quick responses to defined events. A webhook is a way to automatically send data or trigger actions in other systems when a specific event occurs on the device. Gain total control over your smart home!
Bluetooth and Wi-Fi integration and coverage
The Shelly 2PM Gen3 acts as a Wi-Fi range extender as well as a Bluetooth gateway, allowing the device to work even more efficiently in larger spaces. Support for communication protocols such as KNXnet/IP provides greater flexibility for integration with other smart home devices and systems.
Safety of use
Use the controller without any worries. Shelly 2PM Gen3 provides protection against overheating, overvoltage, overload and excessive power consumption. In Cover Control mode, the device detects obstacles and automatically stops movement to prevent damage.
| Manufacturer | Shelly |
|---|---|
| Manufacturer code | 2PMGen3x4 |
| Dimensions | 37 x 42 x 16 mm |
| Weight | 30 g |
| Maximum terminal torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.2 to 2.5 mm² / 24 to 14 AWG (single wire, multi-strand, sleeve terminations) |
| Length of stripped wire | 6 to 7 mm |
| Mounting | Wall console / flush-mounted box |
| Housing material | Plastic |
| Housing color | Black |
| Operating temperature | from -20°C to 40°C |
| Humidity | 30% to 70% RH |
| Max altitude | 2000 m |
| Power supply | 110-240V~ / 24 V⎓ ±10% |
| Power consumption | < 1.4 W |
| Maximum switching voltage | 240V~ / 30V⎓ |
| Maximum switching current | 16A (240V~) / 10A (30V⎓) |
| Built-in temperature sensor | Yes |
| Voltmeter (AC) | Yes |
| Ammeter (AC) | Yes |
| Protection against overheating | Yes (AC) |
| Overvoltage protection | Yes (AC) |
| Overload protection | Yes (AC) |
| Protection against excessive power consumption | Yes |
| Obstacle detection | Yes (iris mode) |
| Safety switch | Yes (iris mode) |
| Wi-Fi protocol | 802.11 b/g/n |
| RF band | 2400 – 2495 MHz |
| Max RF power | < 20 dBm |
| Range | Up to 50 m / up to 30 m indoors (depending on local conditions) |
| Bluetooth protocol | 4.2 |
| RF band | 2400 – 2483.5 MHz |
| Max RF power | <4 dBm |
| Range | Up to 30 m outdoors / up to 10 m indoors (depending on local conditions) |
| CPU | ESP-Shelly-C38F |
| Flash memory | 8 MB |
| Schedules | 20 |
| Webhooks (URL shares) | 20 with 5 URLs per webhook |
| Wi-Fi Range Extender | Yes |
| BLE Gateway | Yes |
| Scripting | Yes |
| MQTT | Yes |
| Encryption | Yes |
