Sonoff fast track couplers for rail (20 pcs).
Sonoff brand fast track couplers for rail are the ideal solution for anyone who needs a fast and reliable connection of cables. With their help you can easily connect cables without the need for soldering, twisting or the use of insulating tape. The set is ideal for use in domestic and industrial installations, ensuring durability and reliability.
They will prove themselves in various tasks
The set of Sonoff 211 fast track connectors is characterized by its robust design and simplicity of installation. The connectors are rated for 250 volts and up to 32 amps, ensuring their versatility and reliability in a variety of working conditions.
High quality materials
Sonoff 211 quick connectors are made of the highest quality materials. The contact is made of red copper, which guarantees excellent conductivity and durability. In turn, the PA plastic insulation provides resistance to high voltage, corrosion and aging, resulting in a long product life.
Flexibility in application
The Sonoff 211 rail-mounted quick-connector kit is designed for connecting both solid conductors with cross-sections from 0.2 to 4 mm² (24-12 AWG) and flexible conductors with cross-sections from 0.2 to 2.5 mm² (24-14 AWG). This makes the product extremely versatile and can be used in various electrical installations.
Ease of installation and use
Installation of the Sonoff 211 quick disconnects is quick and easy. Simply strip the wire, insert it into the connector and close the lever. With no need for tools, this method significantly reduces the time needed for installation, while increasing the safety and aesthetics of the connections.

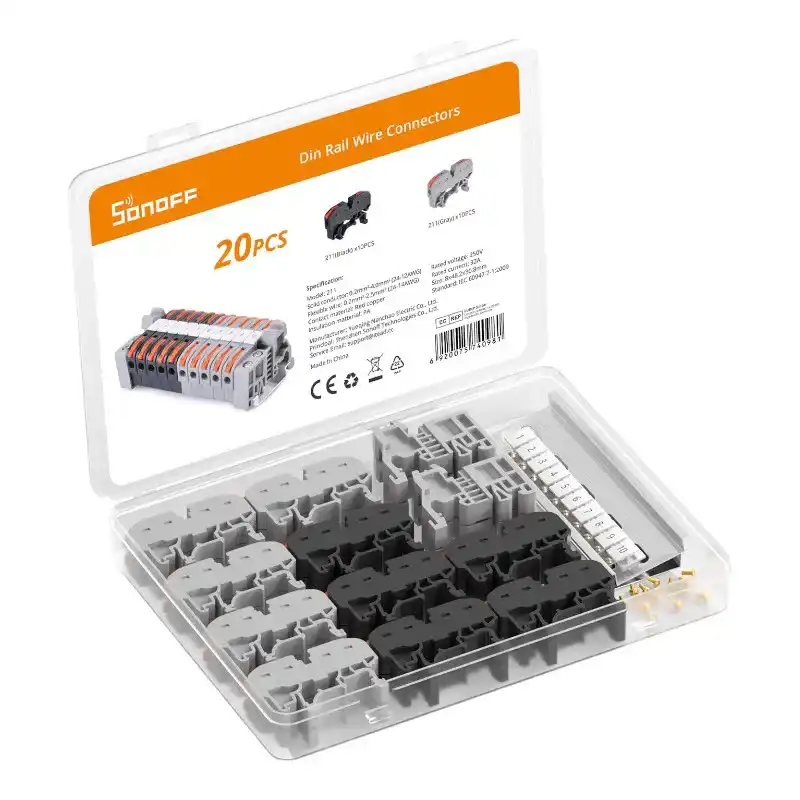

Everything you need

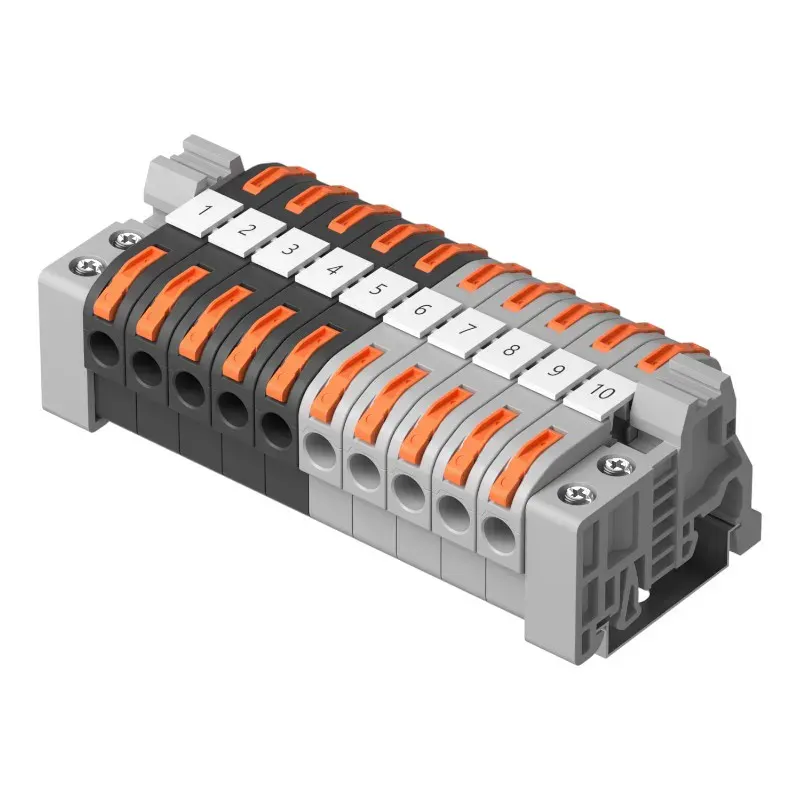

The kit comes with 20 pieces of fast track connectors that can be easily and quickly mounted on a DIN rail. Thanks to the precision-made mounting elements, the connectors provide a secure and stable connection of wires, which is extremely important in professional electrical installations.
| Manufacturer | Sonoff |
|---|---|
| Model | 211 |
| Rated voltage | 250 V |
| Rated current | 32 A |
| Contact material | Red copper |
| Insulation | PA |
| Solid conductor | 0.2-4 mm2 (24-12AWG) |
| Flexible conductor | 0.2-2.5 mm2 (24-14AWG) |
| Dimensions | 8 x 48.2 x 30.8 mm |
| Number of pieces per set | 20 |
