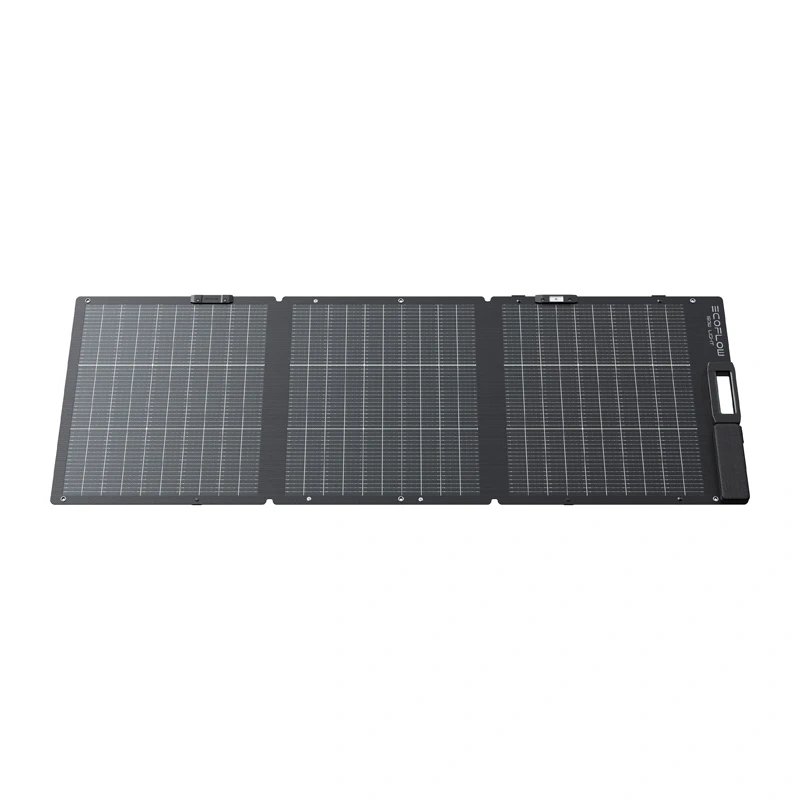

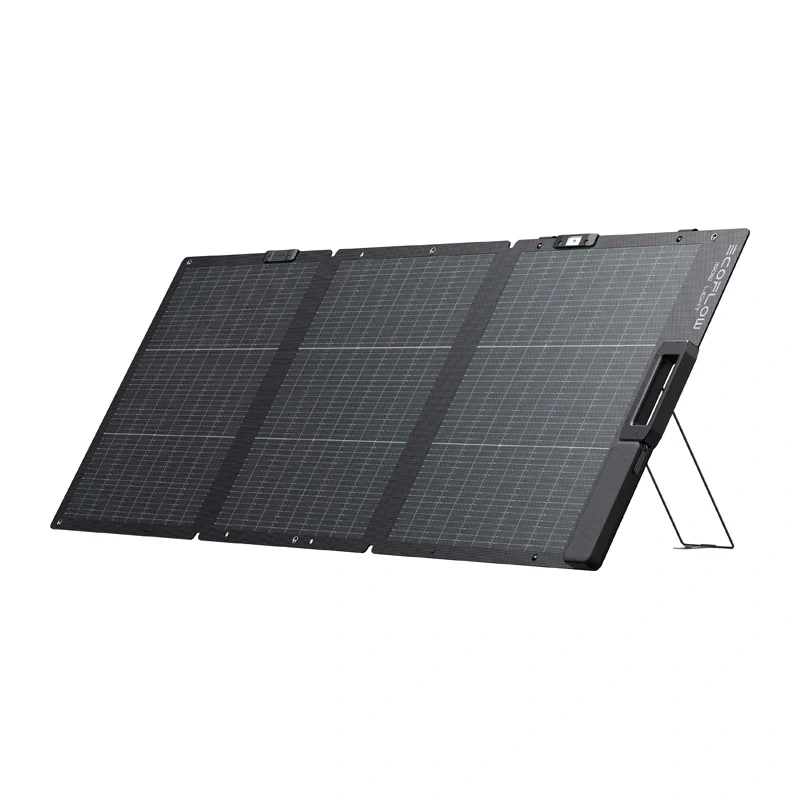

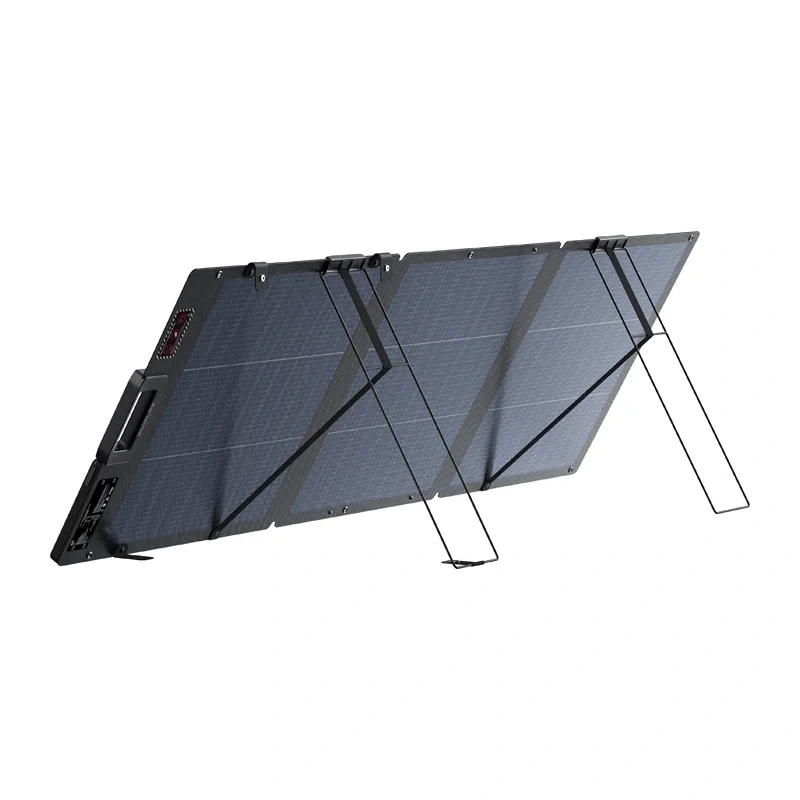

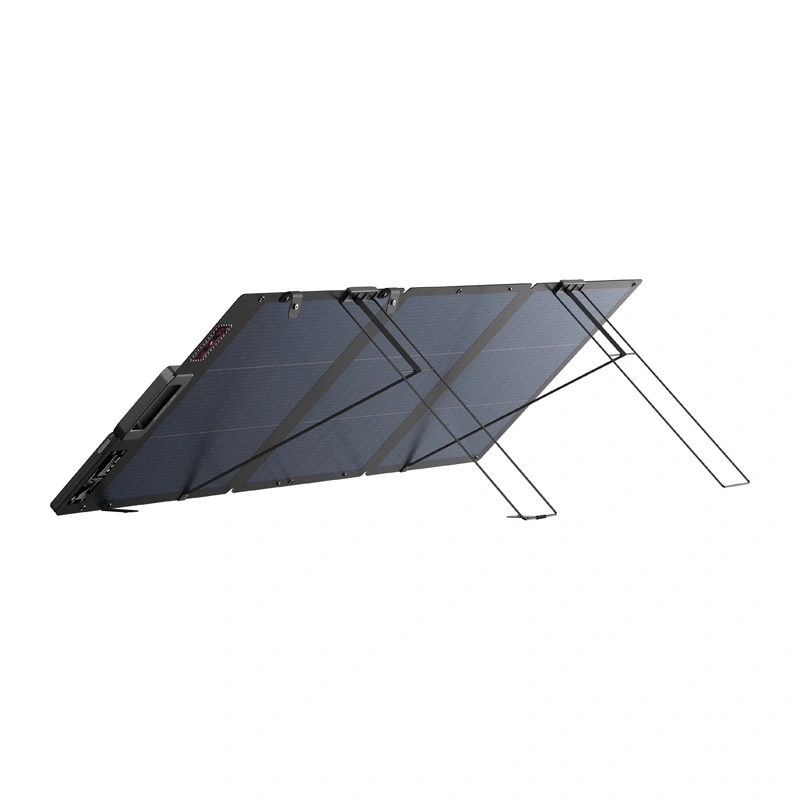

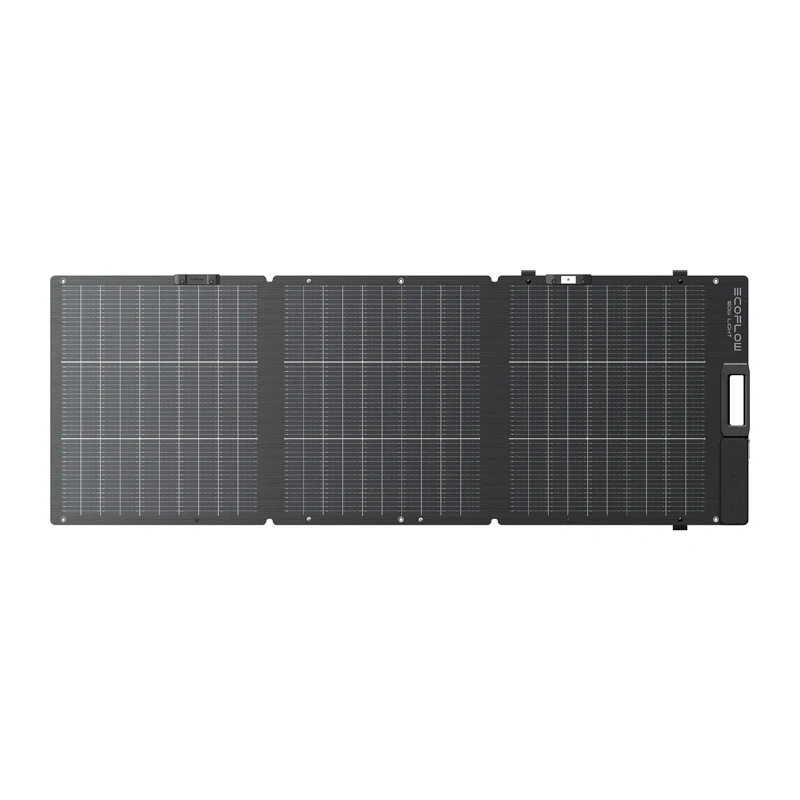

EcoFlow 160W Foldable Solar Panel
The EcoFlow 160W foldable solar panel is a high-performance, portable power source that allows you to conveniently charge power stations and other compatible devices in almost any conditions. With a rated power of 160 W (STC) and the use of monocrystalline TOPCon cells with an efficiency of at least 25%, the panel effectively harnesses solar energy, ensuring fast and efficient charging. The bifacial design with an efficiency of 80% ±5% further increases the amount of energy harvested, which is particularly useful when camping, traveling in a camper, or working in the field.
High efficiency and stable operation
The panel offers an open-circuit voltage of 21.4 V and an optimal operating voltage of 18.8 V, ensuring stable performance. The optimal operating current is 8.7 A (STC), and the short-circuit current is 9.2 A, ensuring that energy is transferred efficiently and without loss. The XT60 connector guarantees broad compatibility with EcoFlow devices and other power systems equipped with a compatible input.
Ready for use in harsh conditions
The IP68 rating ensures high resistance to dust and water. The operating temperature range from -40°C to 85°C allows it to be used both on hot days and in demanding weather conditions. Weighing approximately 3.8 kg and featuring a foldable design, the panel is convenient to transport and easy to store.

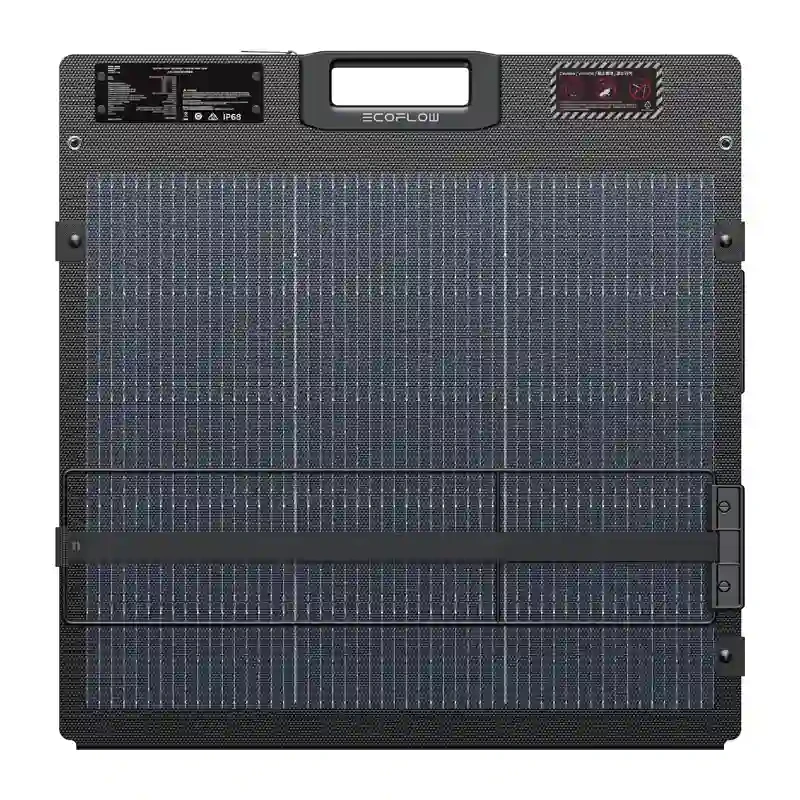

Foldable design for easy transport
When unfolded, the panel measures 1677 × 598 × 26 mm, offering a large active surface area for efficient solar energy harvesting. When folded, its dimensions reduce to 609 × 598 × 26 mm, making it easy to transport and store. This is a practical solution for those who need an efficient yet portable power source.
Included
- photovoltaic panel
- user manual
| Manufacturer | EcoFlow |
|---|---|
| Model | EF-FOLD-160-LW |
| Rated power | 160 W ±5 W (STC) 177 W ±5 W (BNPI) |
| Open-circuit voltage | 21.4 V |
| Short-circuit current | 9.2 A (STC) 10.2 A (BNPI) |
| Optimal operating voltage | 18.8 V |
| Optimal operating current | 8.7 A (STC) 9.6 A (BNPI) |
| Recommended ambient temperature | -40°C to 85°C |
| Temperature coefficient of rated power | -0.30%/°C |
| Temperature coefficient of open-circuit voltage | -0.25%/°C |
| Temperature coefficient of short-circuit current | +0.045%/°C |
| Bipolarity | 80% ±5% |
| Ingress protection | IP68 |
| Weight | Approx. 3.8 kg |
| Dimensions when unfolded | 1677 × 598 × 26 mm |
| Dimensions when folded | 609 × 598 × 26 mm |
| Cell type | TOPCon monocrystalline silicon |
| Cell efficiency | ≥25% |
| Connector type | XT60 |
